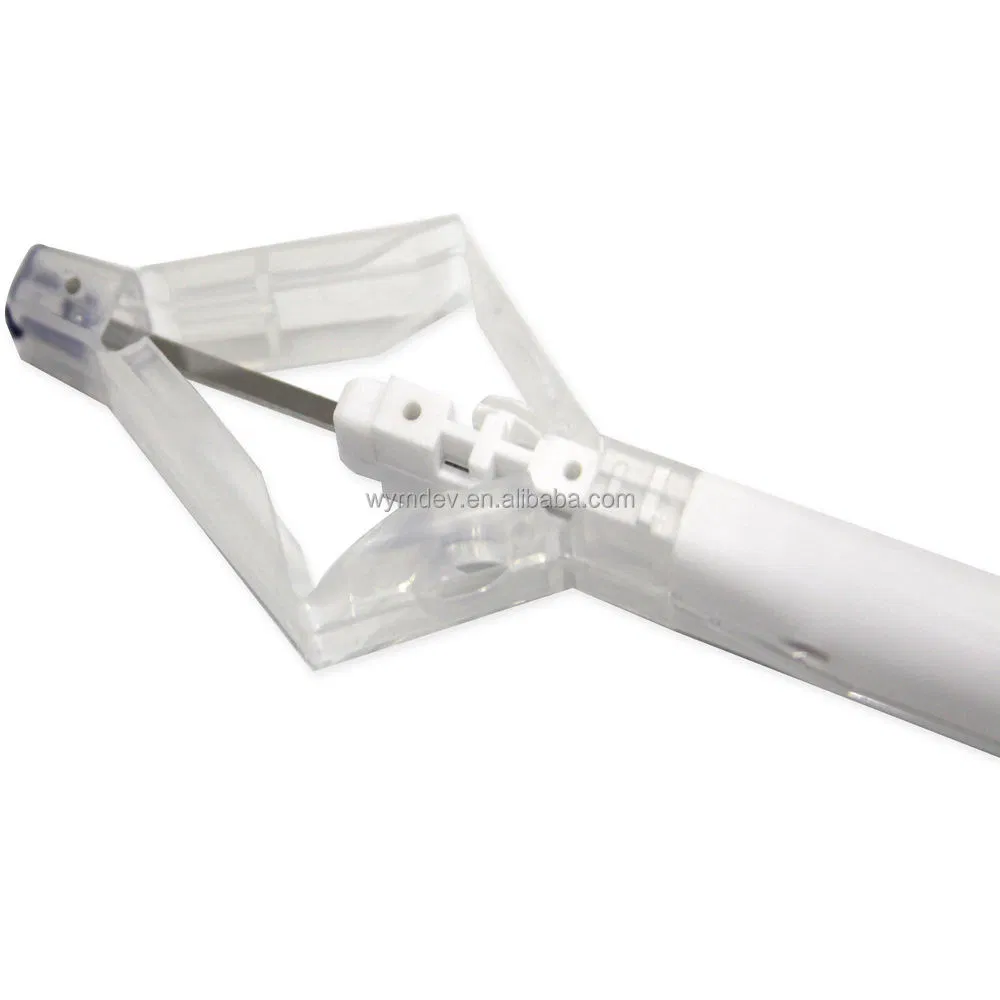

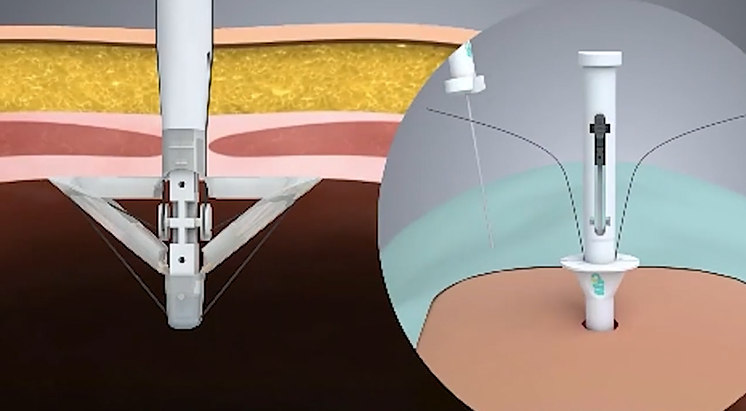

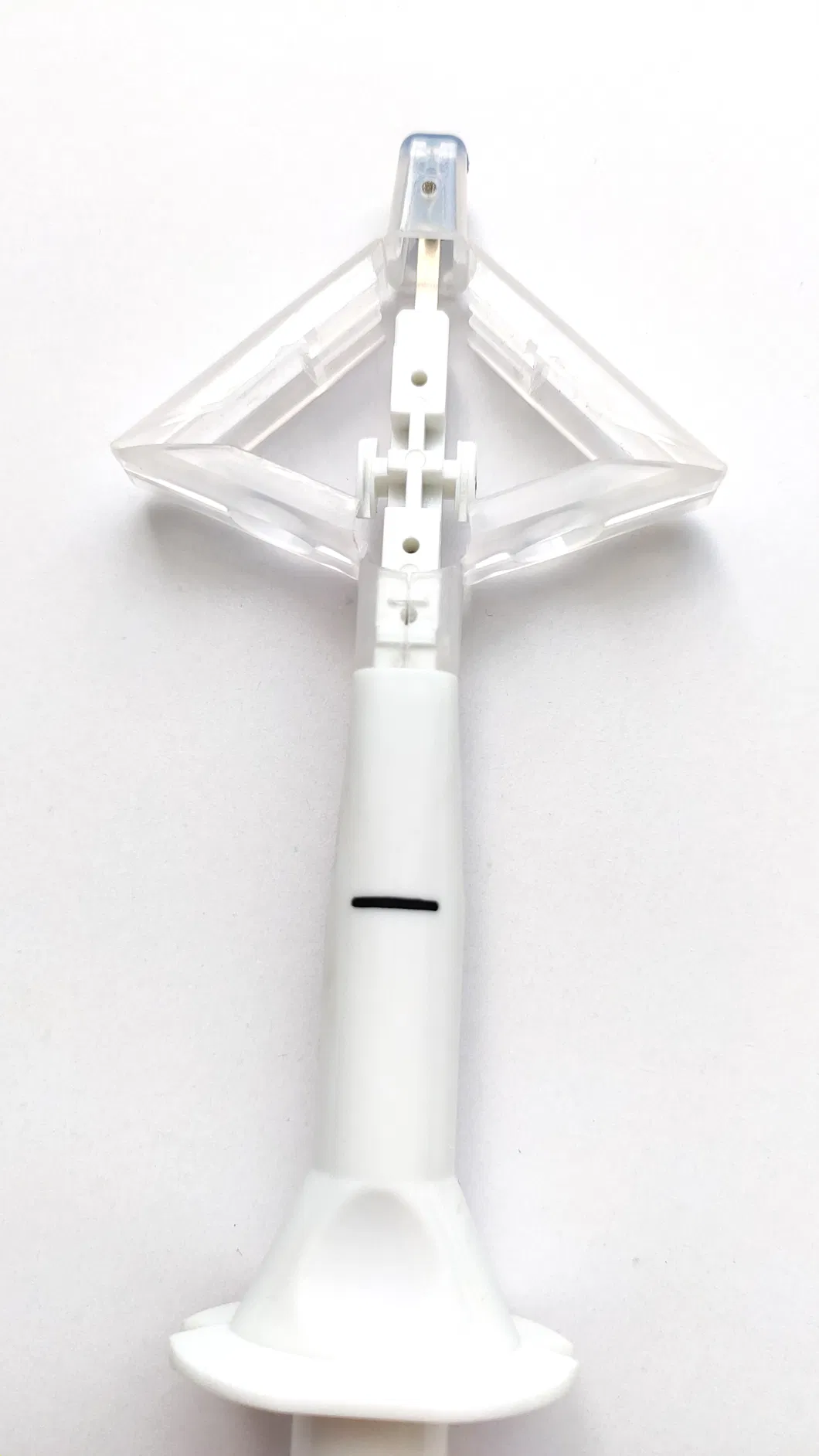

Insert the device into the defect and use the slide lock to engage wing shields. Once the wings are locked, position them against the abdominal wall. The suture retriever exit line should be below skin level to ensure an optimal suture purchase.

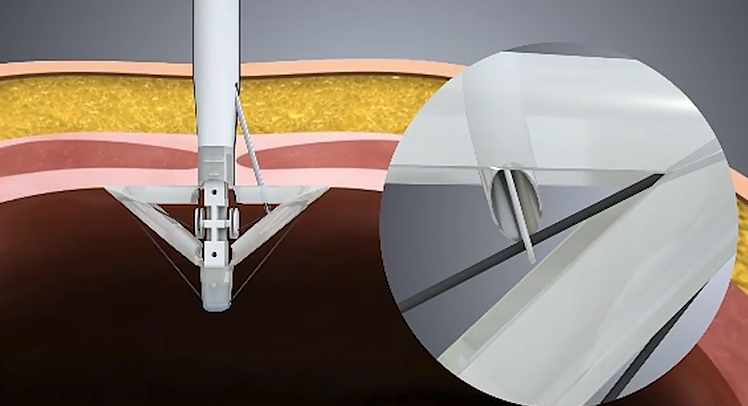

Fully insert the suture retriever into the guide channel and press the black suture retrieval button until it locks to capture the suture. Remove the retriever and press the reset button to repeat the process on the other side.

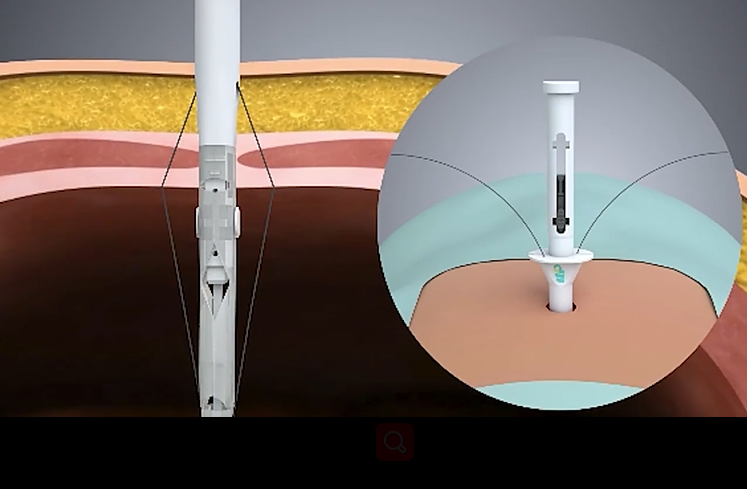

Reposition the slide lock to collapse the wing shields, then remove the device from the defect. Secure both ends of the suture and tie using your preferred method to complete the closure.

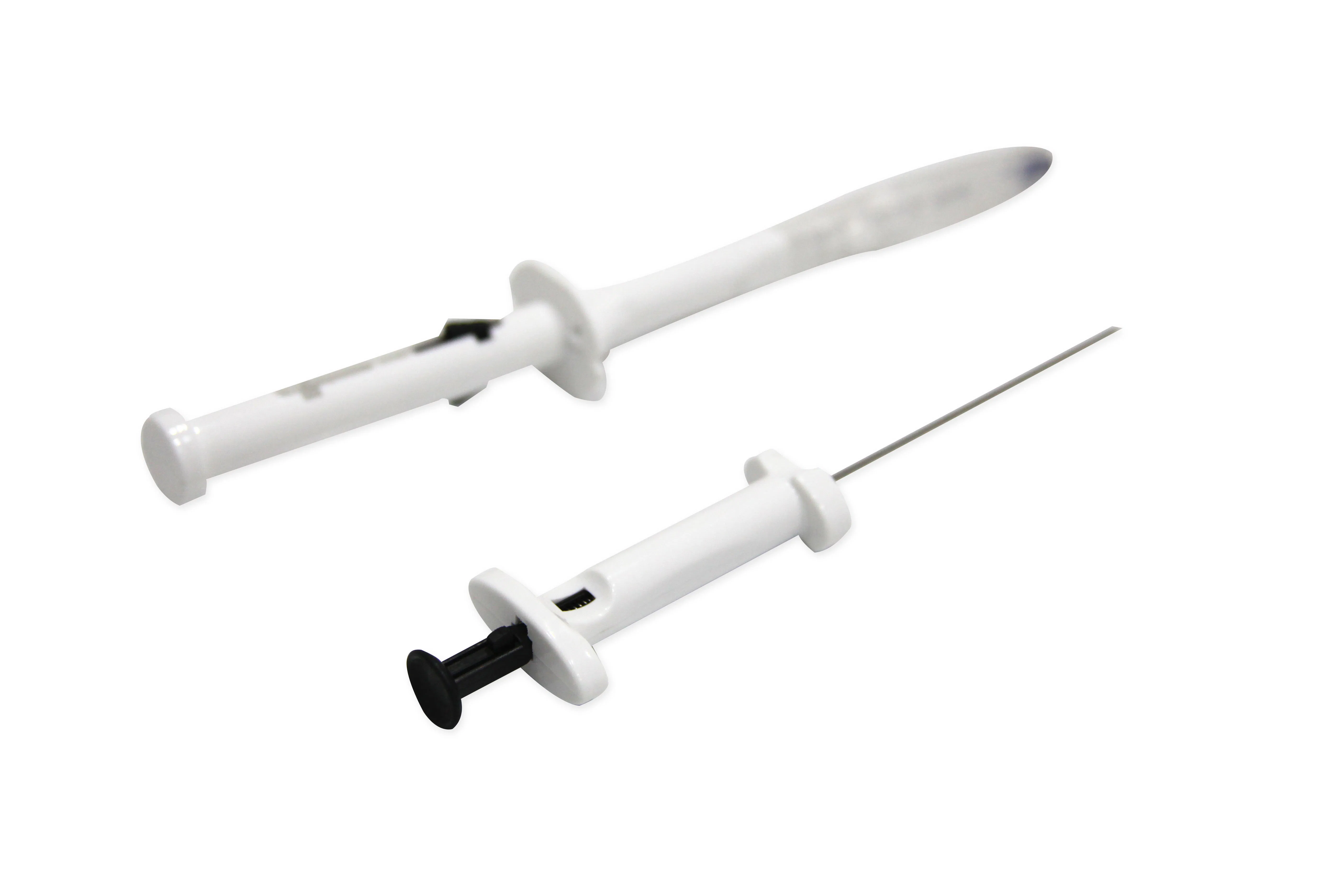

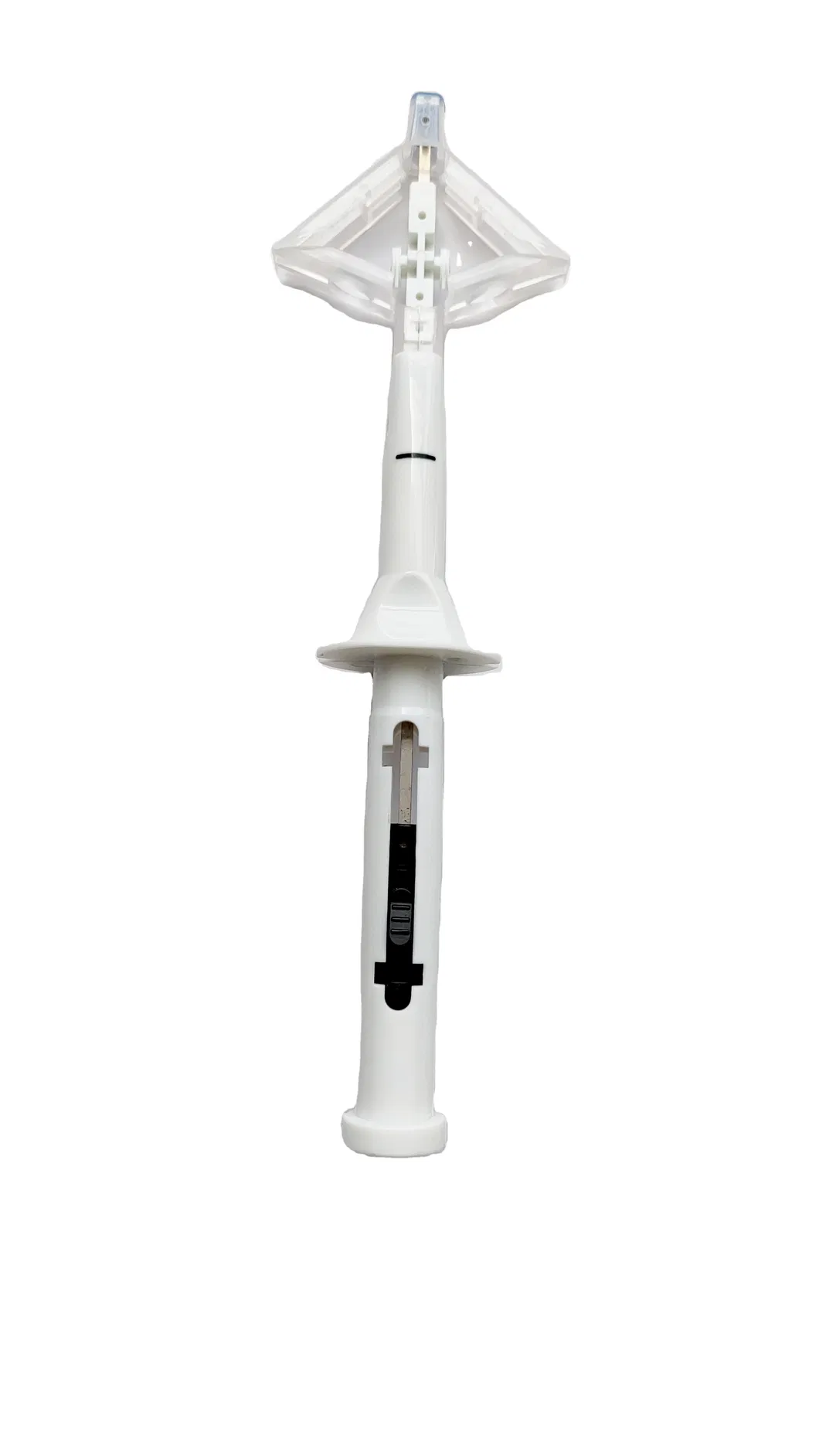

| Product Name | Disposable Endo Fascia Closure System |
|---|---|
| Model No. | WPJM-13.5 |
| Appearance | Smooth appearance, soft, clear outline, no burr, flying edge, scratches, shrinkage and other defects. Be in good condition, free from damage, contamination and air bubbles. |
| Feature | Help surgeons to close port site easily, fast and safe in laparoscopic endoscopic surgery. Effectively minimizes post-operative complications including infection, bleeding, and port site hernia. High precision and good surface treatment. |
| Performance | The tip of the suture needle should have no empty tip. After the tip is loaded with 0.98N top pressure at the afterloading speed of 10g/s, there should be no bending hook. And needle puncture force should be less than 10N. |

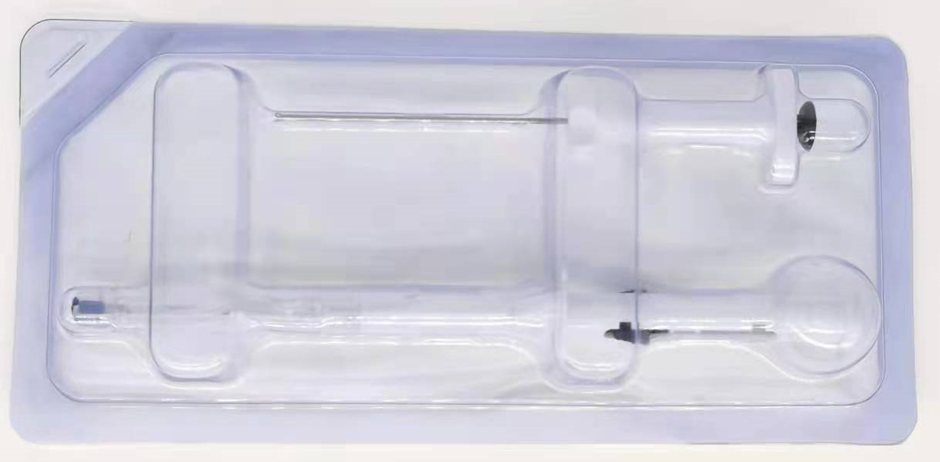

| Package | Aseptic packaging shall be intact and the bonded sealing area shall be free of channels or perforations. The peel strength of the packaging seal shall not be less than 0.1 N/mm, the two contact surfaces shall be smooth and continuous and uniform without lamination or tearing. |
| Sterility | Sterilized with confirmed ethylene oxide and product should be sterile. |
| Residual EO | After sterilization with ethylene oxide, the residual ethylene oxide should not be more than 10μg/g. |
