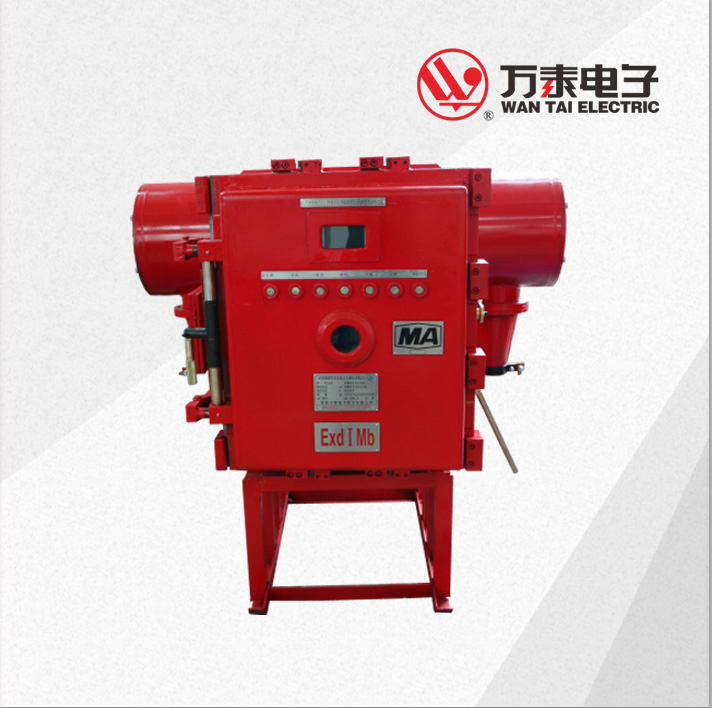

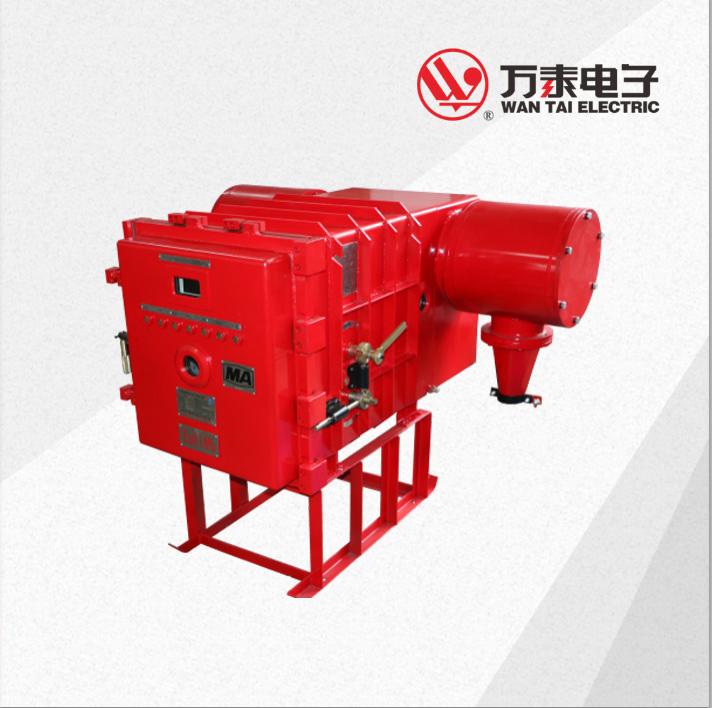

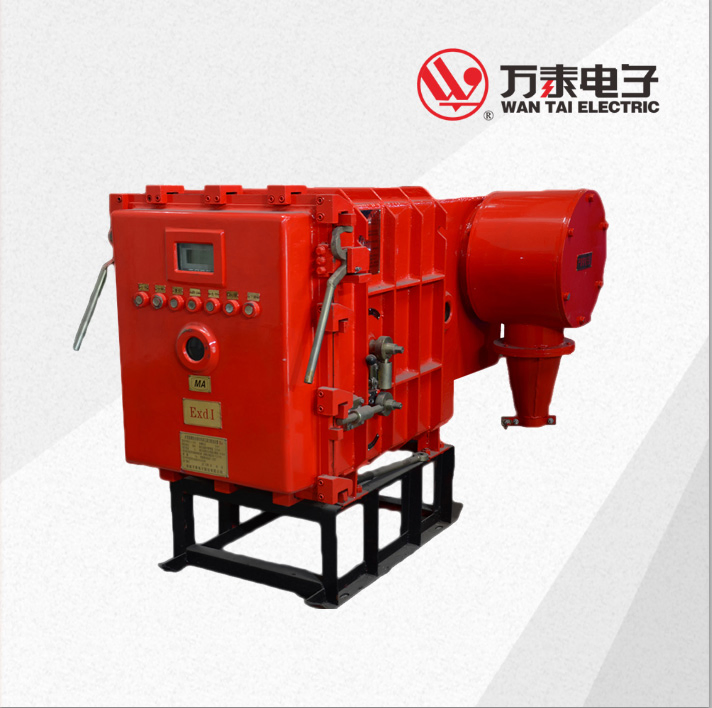

The product is mainly applicable in the coal mine with explosive gas (methane mixture), to control, protect and measure in the three-phase AC neutral point not directly grounded power supply system of rated voltage 10KV, 6KV, rated frequency 50Hz.
| Parameter | Value | Unit |
|---|---|---|
| Rated voltage | 6, 10 | KV |
| Rated current | 50, 100, 150, 200, 300, 400, 500, 630, 800, 1000, 1250 | A |
| Rated frequency | 50 | HZ |
| Rated short-circuit breaking current | 12.5, 25 | KA |
| Rated short-circuit making current | 31.5, 63 | KA |
| Rated peak withstand current | 31.5, 63 | KA |
| Allowable operating frequency | 180 | Times/h |
| Short circuit protection action time | ≤100 | MS |
| Mechanical life | 100000 | Times |

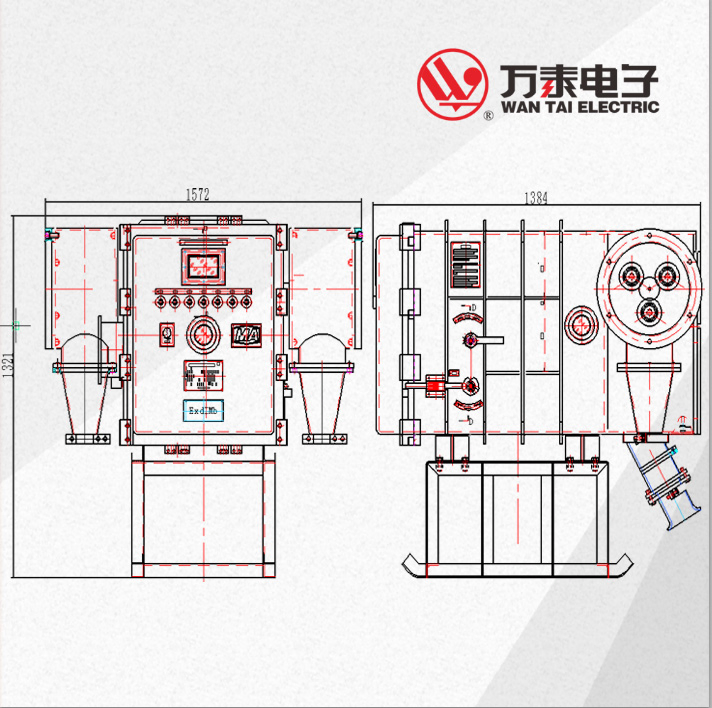

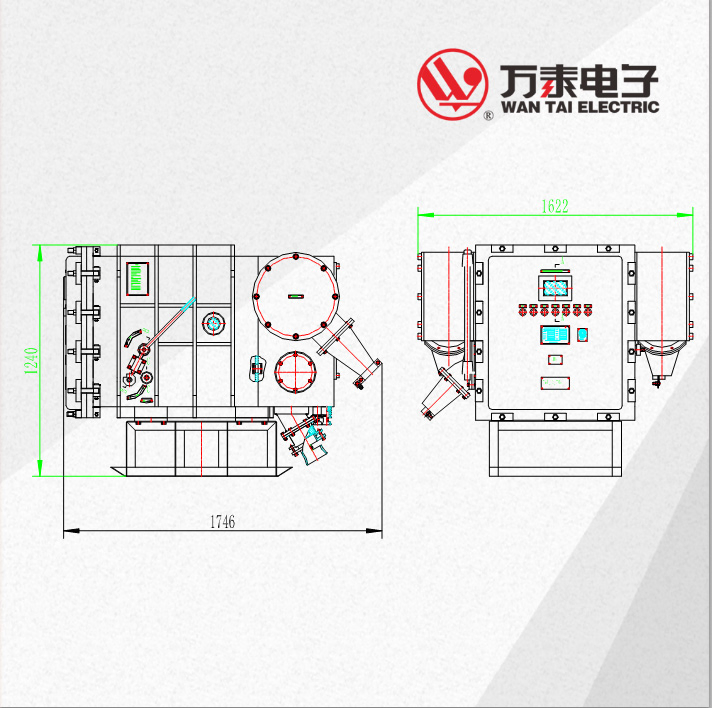

| Dimensions(W*D*H) | 1572* 1384*1321, 1622*1746*1240 | MM |
| Intrinsic safety parameters (Uo) | 12 | V/DC |
| Intrinsic safety parameters (Io) | 4.5 | MA |
It is designed primarily for coal mines with explosive gas (methane mixtures) to control, protect, and measure three-phase AC neutral point systems not directly grounded, operating at rated voltages of 6KV or 10KV and a rated frequency of 50Hz.
The device features an explosion-proof Ex Grade of Exd [Ib] I MB and an ingress protection rating of IP54, ensuring high level security in demanding mine environments.
Yes, the human-computer interaction interface uses a color LCD screen and supports customizable display languages to meet different international requirements.
It is equipped with a standard RS485 communication interface and provides standard communication protocols to ensure seamless data transmission and integration.
The device is designed for heavy-duty industrial use and has a verified mechanical life of up to 100,000 times.
