Product Description

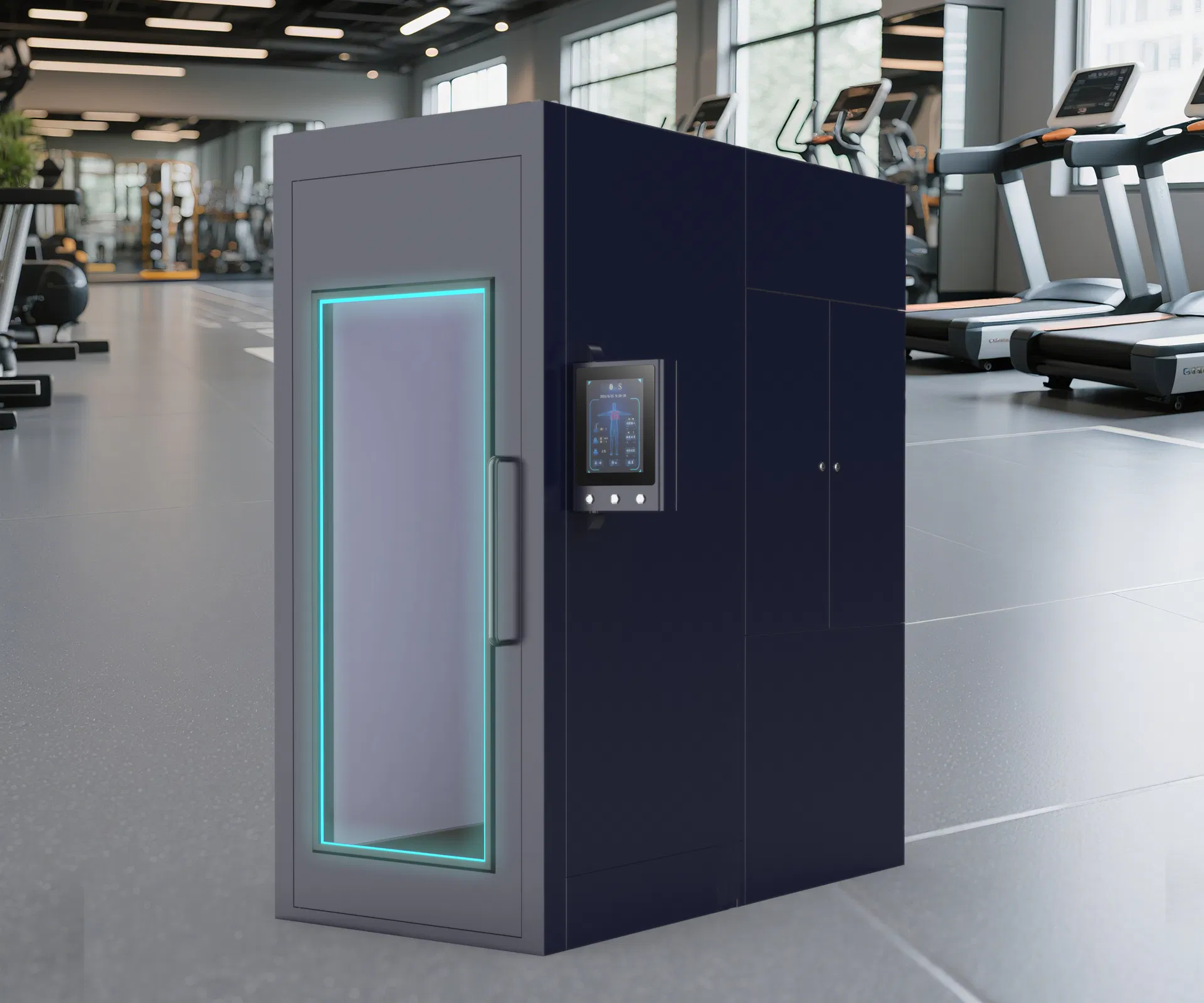

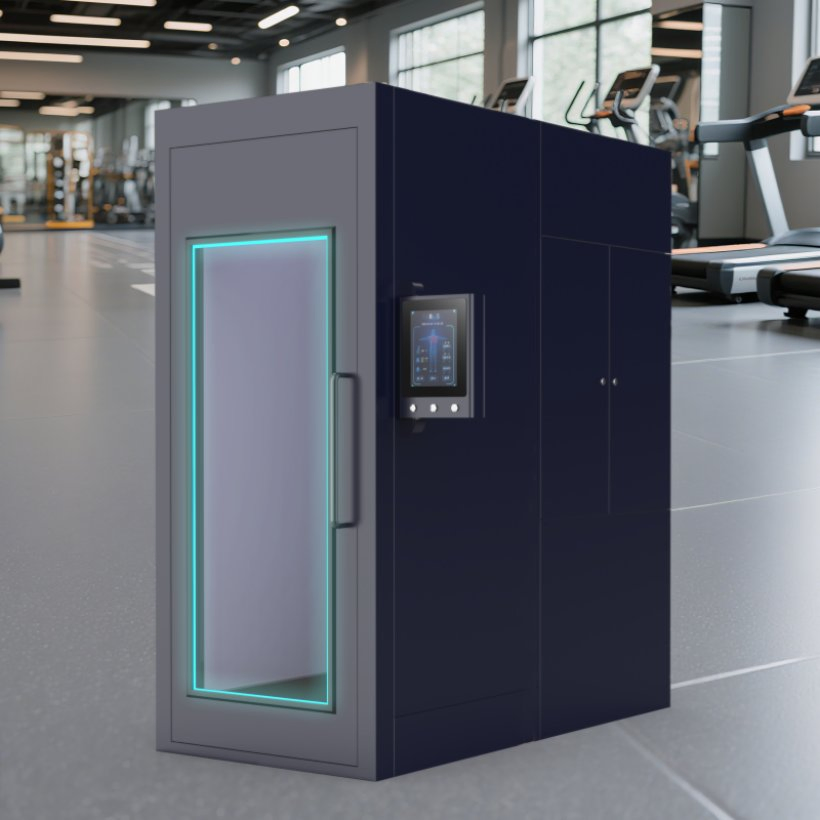

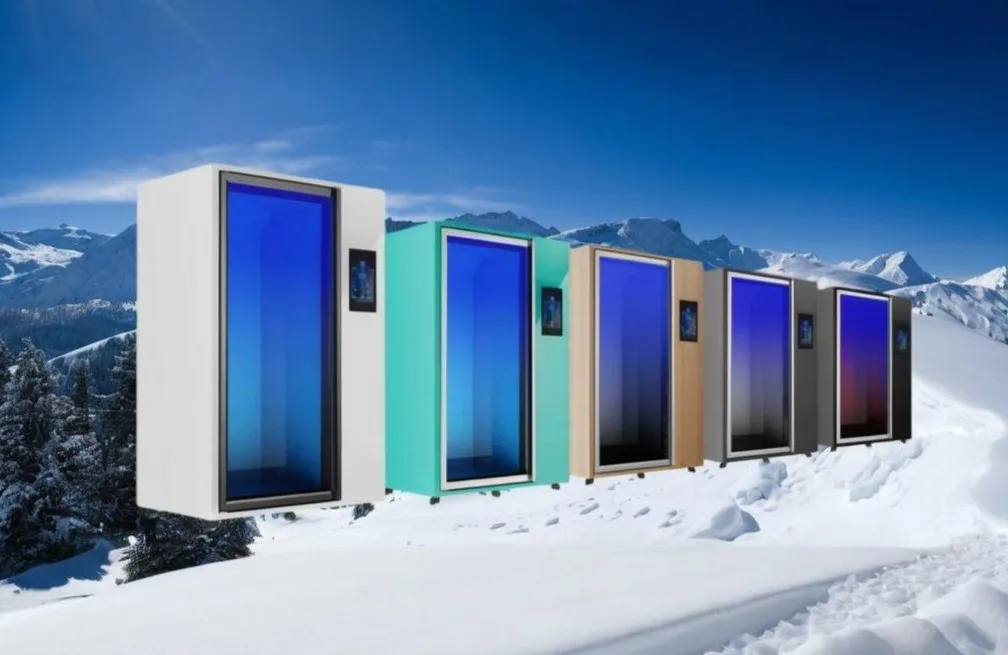

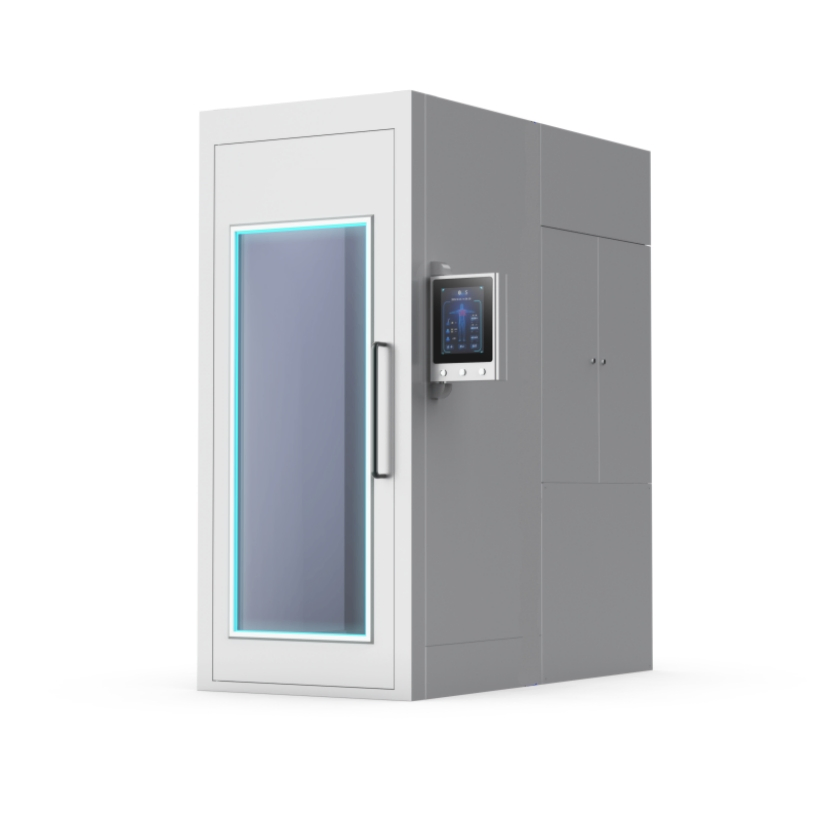

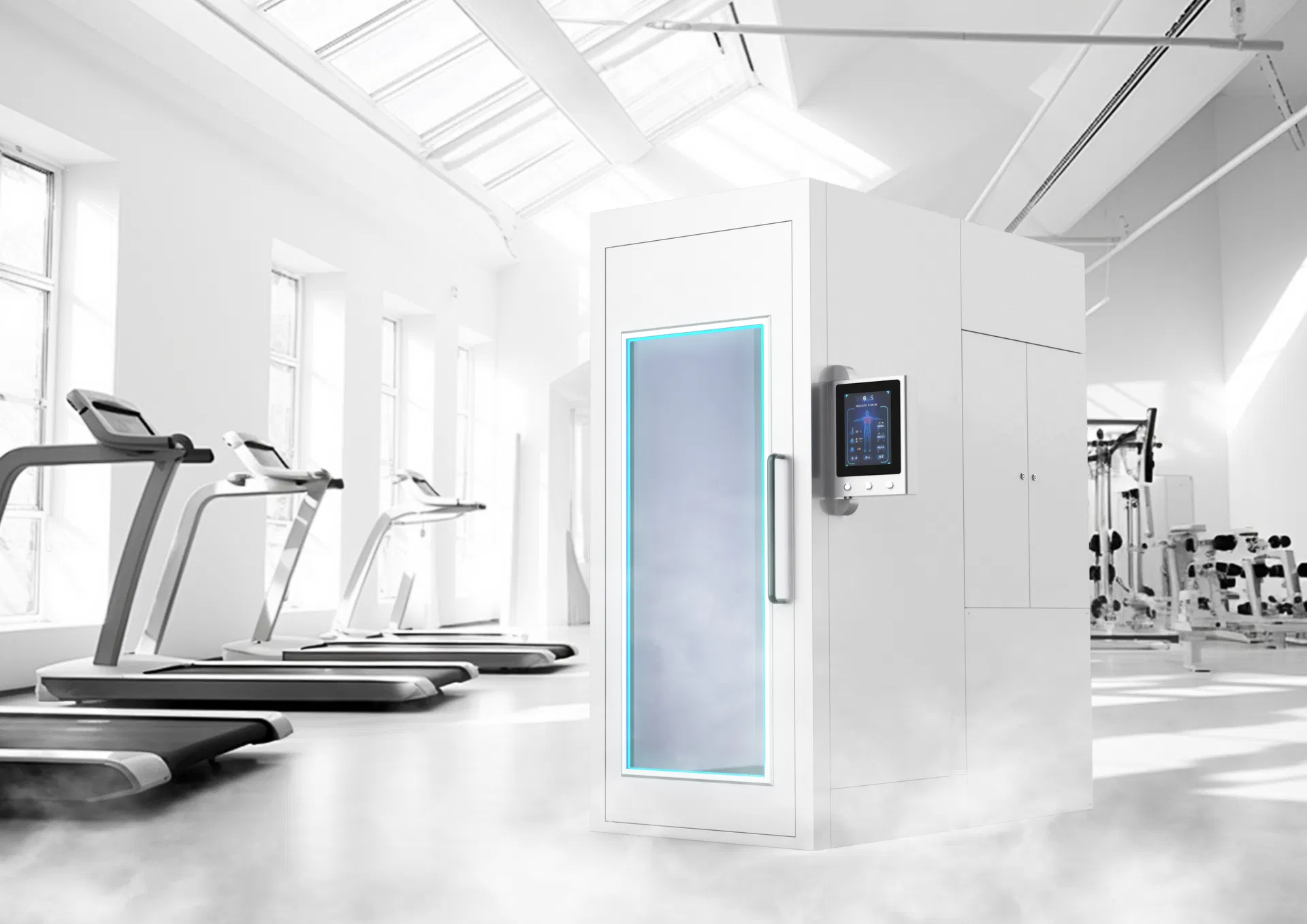

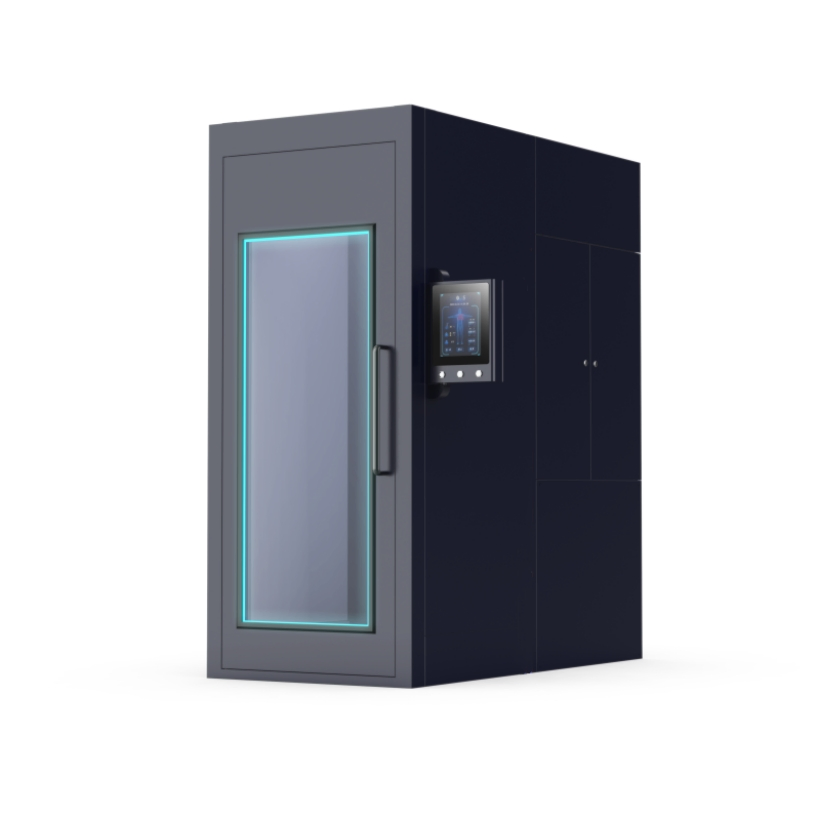

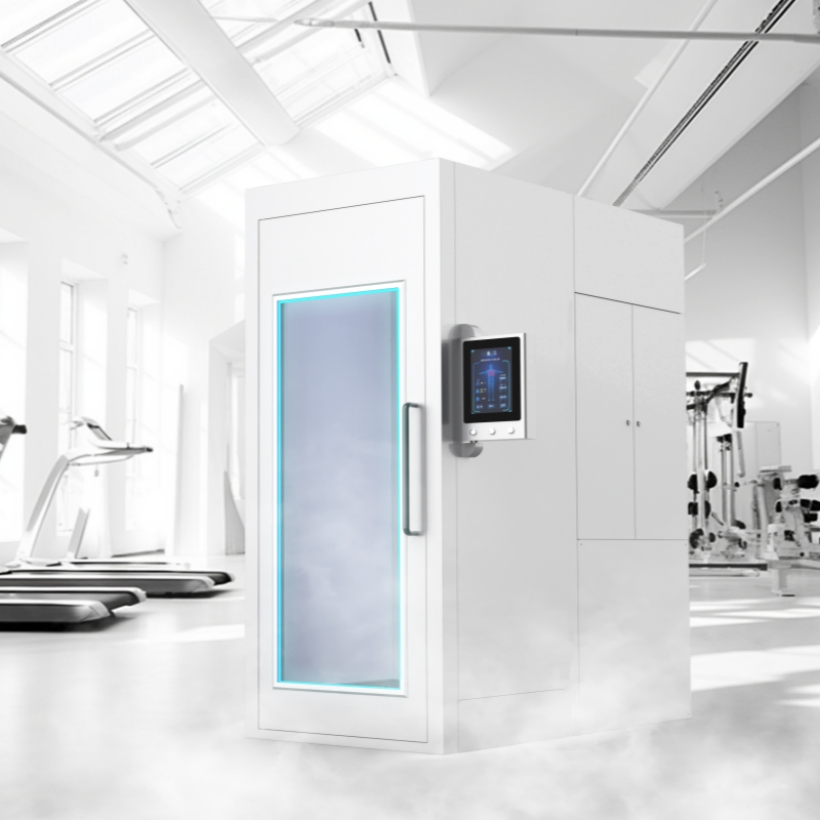

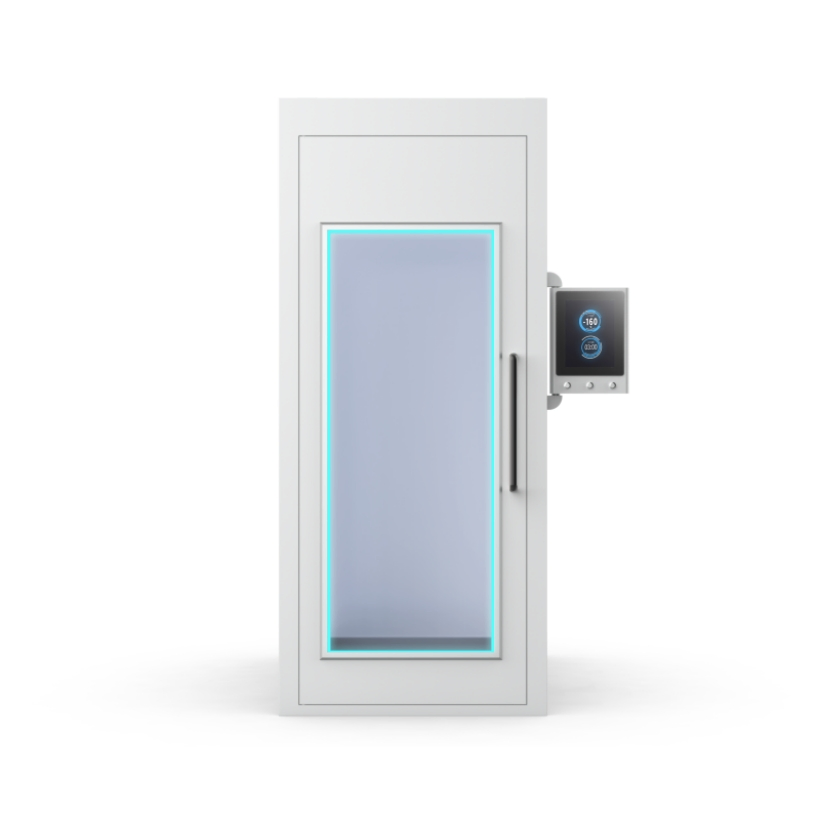

The electric ultra-low temperature cryotherapy chamber is a whole-body cryotherapy system that uses an electrically driven refrigeration system. It is designed for short-term exposure of the human body to an ultra-low-temperature environment for cryotherapy and rehabilitation purposes.
The system does not require liquid nitrogen as a cooling source. Instead, stable and precisely controlled ultra-low temperatures are achieved through electric compressor-based refrigeration. This design delivers effective cryotherapy while ensuring high safety, operational stability, and cost efficiency, making it suitable for long-term and high-frequency use in a wide range of applications.
| Electric Ultra-Low Temperature Cryotherapy Chamber Specifications |
| Item |
Standard Single Chamber |
Pro Dual Chamber |
Plus Multi-Person Chamber |
| Temperature Range |
-80°C to Ambient |
-80°C to Ambient |
-80°C to Ambient |
| Cooling Time (to -80°C) |
20 minutes |
30 minutes |
30 minutes |
| External Dimensions (W*D*H) |
1800 * 850 * 2350 mm (including unit) |
2000 * 1100 * 2350 mm (including unit) |
1700 * 1700 * 2680 mm (excluding unit) |
| Internal Dimensions (W*D*H) |
900 * 650 * 2050 mm |
1200 * 900 * 2050 mm |
1200 * 1500 * 2050 mm |
| Maximum Load Capacity |
0-250 kg |
0-400 kg |
0-800 kg |
| Capacity |
1-2 persons |
2-3 persons |
4-6 persons |
| Power Supply |
220 V / 50 Hz |
220 V / 50 Hz |
380 V / 50 Hz |
| Installed Power |
8 kW |
12 kW |
25 kW |
| Cooling Source |
Cascade refrigeration compressor system |
Cascade refrigeration compressor system |
Cascade refrigeration compressor system |
| Installation Method |
Integrated unit, plug-and-play |
Integrated unit, plug-and-play |
Split system, on-site installation & commissioning |

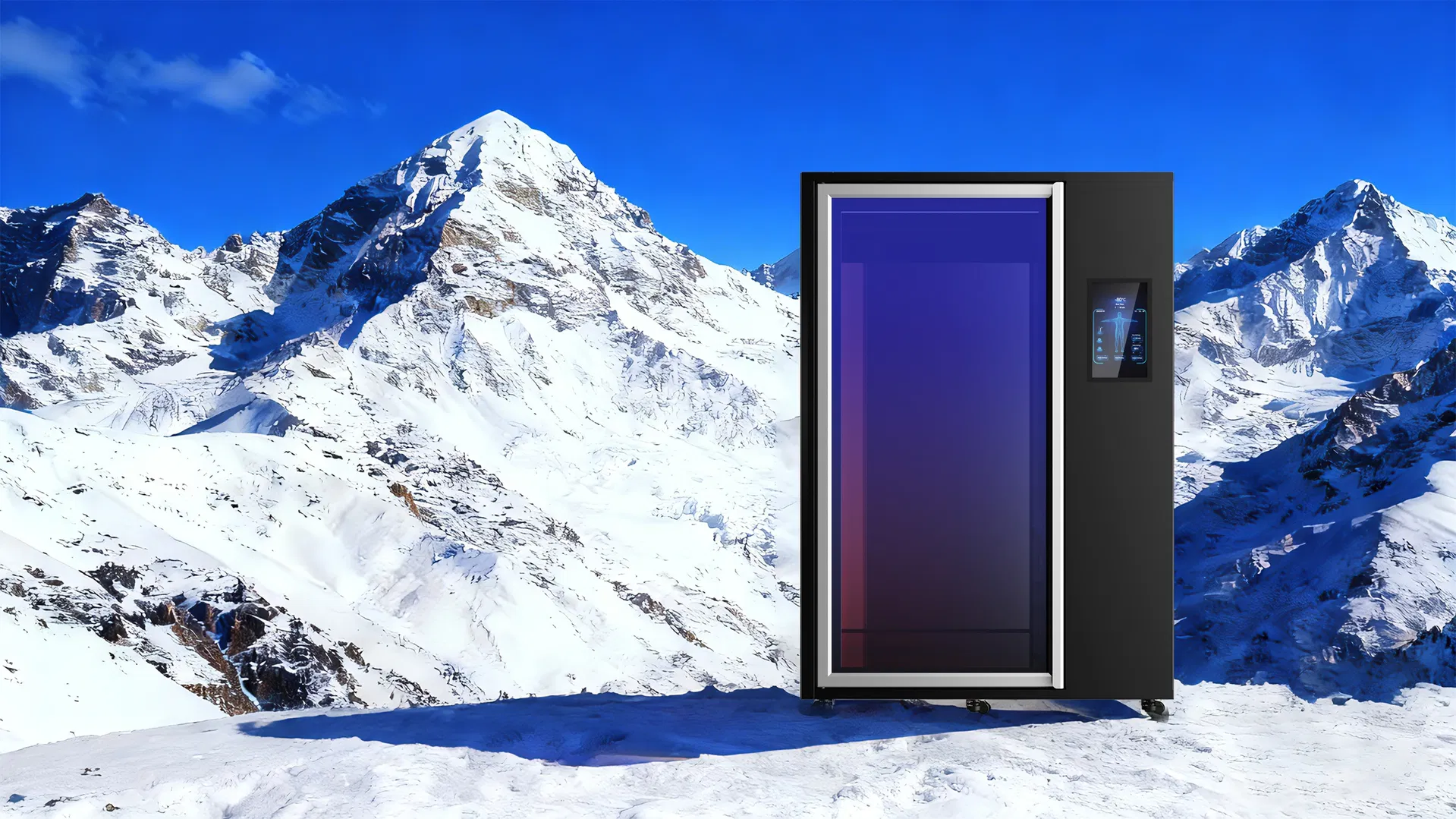

The electric cryotherapy chamber is based on cascade refrigeration technology. Multiple stages of electric compressors operate in a closed refrigeration cycle, allowing the system to rapidly reduce the temperature from ambient conditions to the ultra-low-temperature range. Electrical power is the sole energy source, with no reliance on cryogenic liquids.
Cold air is evenly distributed throughout the chamber via an internal air circulation system, placing the entire body in a uniform and controllable low-temperature environment. The chamber adopts a fully enclosed design, allowing the user's head to remain inside the chamber, which enables more comprehensive and stable cryotherapy while maintaining a high level of safety.
Product Application
Cryosauna is widely used in training centers, sports rehabilitation, gyms, sports events, sports centers, fitness centers, sports colleges, football clubs, basketball clubs, fight clubs, rehabilitation physiotherapy, fitness centers, rehabilitation health centers, beauty salons, SPA and other fields.
Frequently Asked Questions (FAQ)
Does this cryotherapy chamber require liquid nitrogen?
No, the system is fully electric. It achieves stable and precisely controlled ultra-low temperatures using a cascade refrigeration compressor system, eliminating the safety hazards and ongoing supply costs of liquid nitrogen.
What is the temperature range of the chamber, and how long does it take to cool down?
The chamber has a temperature range of -80°C to ambient. It takes approximately 20 to 30 minutes to cool down to -80°C, depending on the model selected.
What capacity options are available for different facilities?
We offer three main models: the Standard Single Chamber (for 1-2 persons), the Pro Dual Chamber (for 2-3 persons), and the Plus Multi-Person Chamber (for 4-6 persons), allowing you to choose the best option based on client volume.
Is this system safe for users to keep their heads inside the chamber?
Yes. Because the system runs on pure electricity rather than nitrogen, there are no concerns about oxygen concentration changes. This fully enclosed design allows the user's entire body, including the head, to receive uniform and safe exposure.
How is the cryotherapy chamber installed and powered?
The Standard Single and Pro Dual models are integrated, plug-and-play units requiring standard 220V/50Hz power. The Plus Multi-Person model is a split system requiring 380V/50Hz power, which is installed and commissioned on-site.
Where are these cryotherapy chambers commonly utilized?
They are highly popular in training facilities, sports rehabilitation centers, gyms, fitness centers, professional sports clubs (football, basketball, etc.), beauty salons, and high-end SPA centers.
