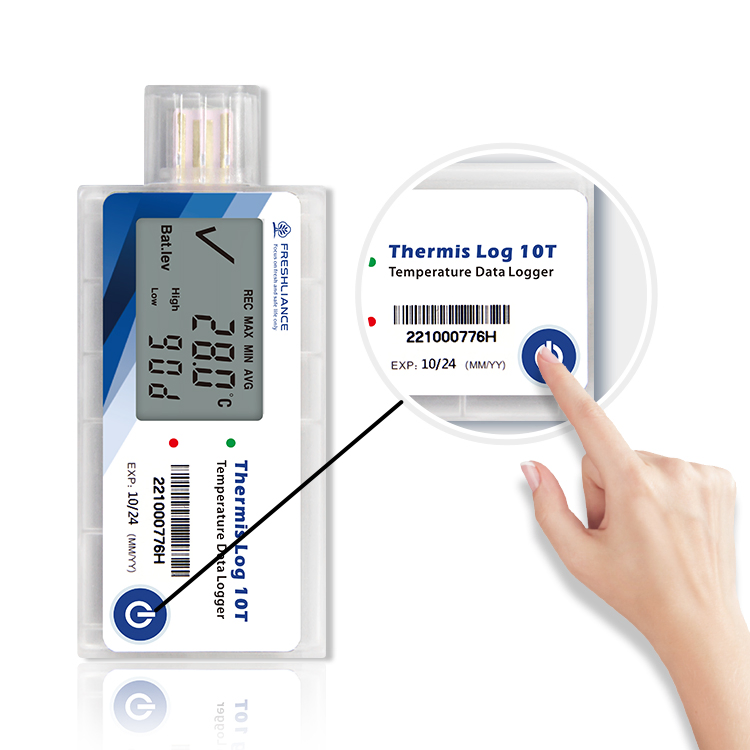

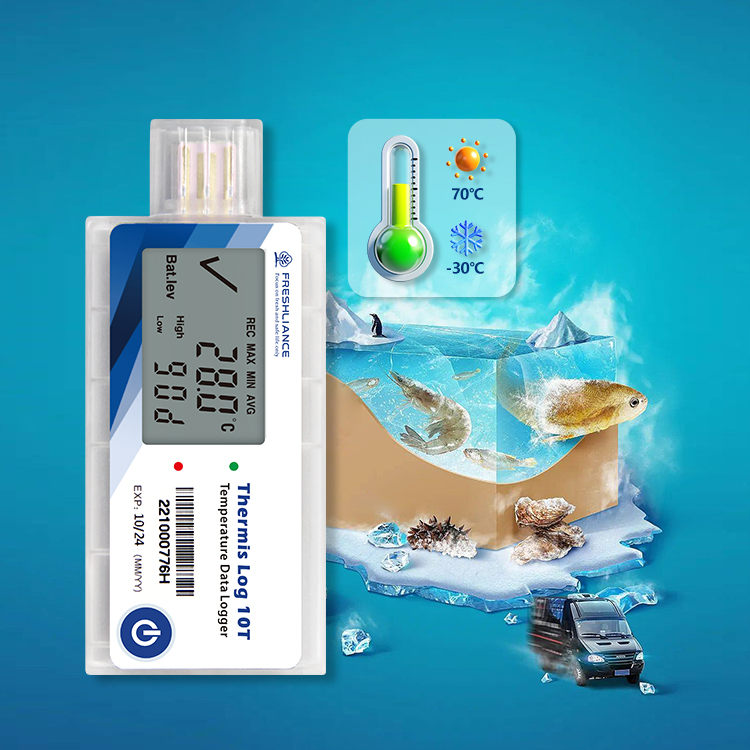

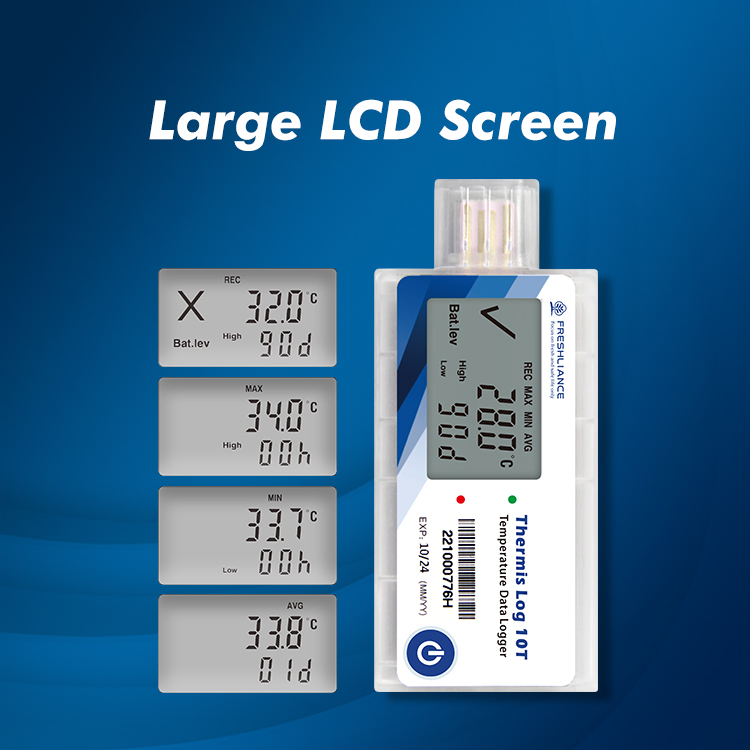

Thermis Log 10t Vaccine Storage Temperature Tracking Device

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview Product Description About Us
Basic Info
Model NO.
Thermis Log 10T
Customized
Customized
Certification
RoHS, CE, ISO
IP Rating
IP65
Screen Size
94mm(L)*41mm(W)*8mm(H)
SD Card Memory Size
Pdf: Max. 65000 Readings Pdf&Csv: Max. 20000 Read
Measuring Medium
Temperature
Model
Thermis Log 10t
Display
LCD Screen
Temperature Range
-30c~+70c
Temperature Accuracy
0.3c at Full Range (-30c to +70c)
Run Days
Max. 120 Days
Memory Capacity
Pdf: Max. 65000 Readings Pdf&Csv: Max. 20000 Read
Report Output
Automatic Generation Without Software
Protection Grade
IP65
Dimensions
94mm(L)*41mm(W)*8mm(H)
Alarm Points
Max. 6 Alarm Points
Battery
3.0V Cr2032
Logging Interval
1 Min to 24 Hours, User Configurable
Start Delay
0 Min to 24 Hours, User Configurable
Connection
USB, NFC (Optional)
Report Format
Pdf/Csv/Pdf&Csv
Specification
94mm(L)*41mm(W)*8mm(H)
Origin
China
Production Capacity
200000/Months
Product Description

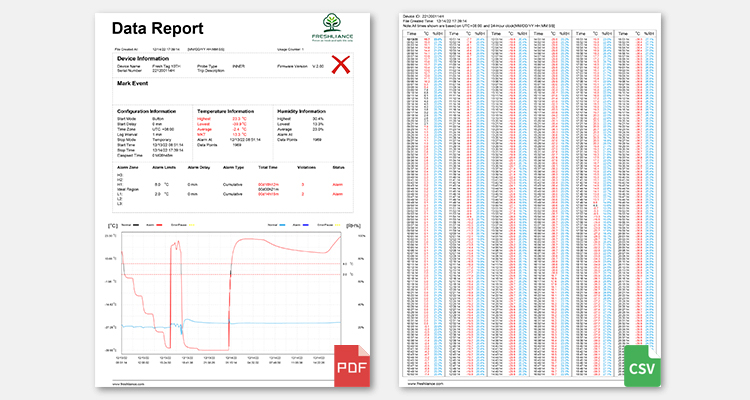

Thermis Log 10T Single-use Temperature Data Logger is a reliable tool for monitoring temperature during the transport and storage of sensitive products, particularly pharmaceuticals. With an LCD screen and a measurement accuracy of ±0.3ºC, this logger ensures precise temperature tracking. The device is housed in food-grade, waterproof packaging, making it durable and suitable for various environments. Its compact and thin design makes it easy to place discreetly. The built-in calibration verification enhances accuracy, while the availability of PDF and CSV reports simplifies data analysis. Simply connect the logger to a PC to access these reports without the need for additional software.

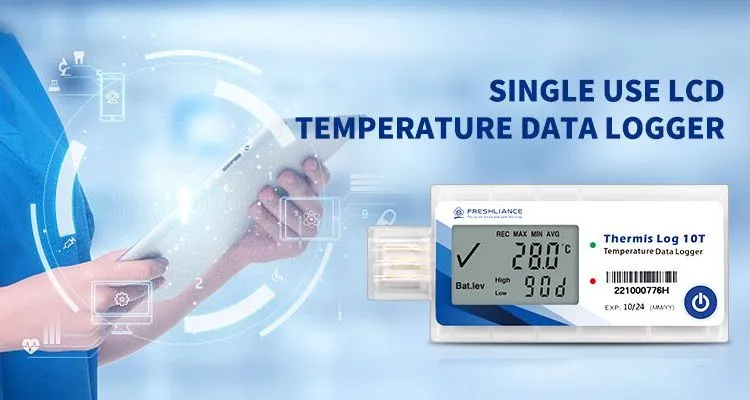

Vaccine Storage Temperature Tracking Device
Model Thermis Log 10T Working Days Up to 120 days
Temperature Range -30ºC~70ºC Temperature Accuracy ±0.3ºC at full range (-30ºC to +70ºC)
Logging Interval Configurable Connection USB, NFC (optional)
Start Delay Configurable Protection Grade IP65
Memory Capacity PDF: Max. 65000 readings
PDF&CSV: Max. 20000 readings
Battery CR2032
Display LCD, LED Alarm Points Max. 6 alarm points
Dimensions 94mm(L)*41mm(W)*8mm(H) Weight 27.5g

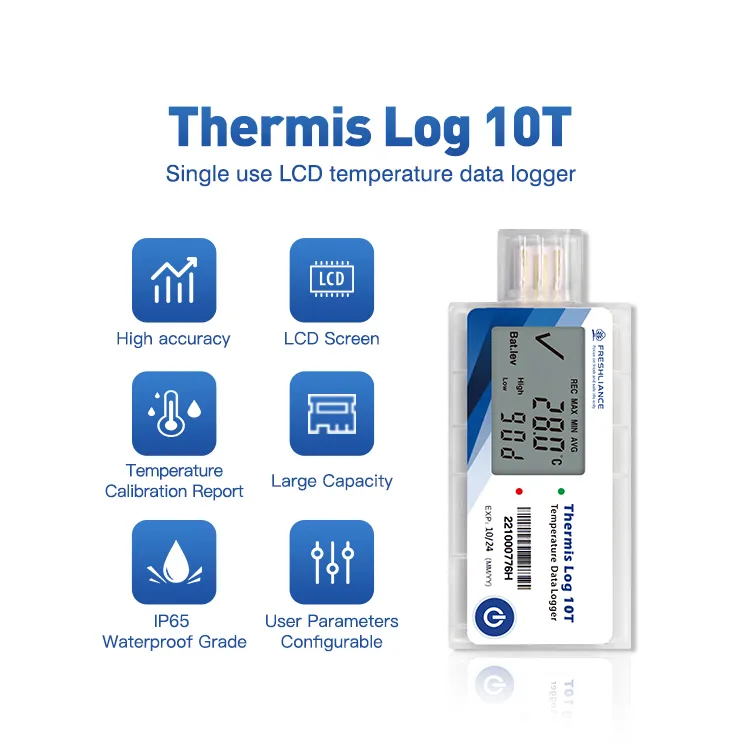

Vaccine Storage Temperature Tracking Device Detail

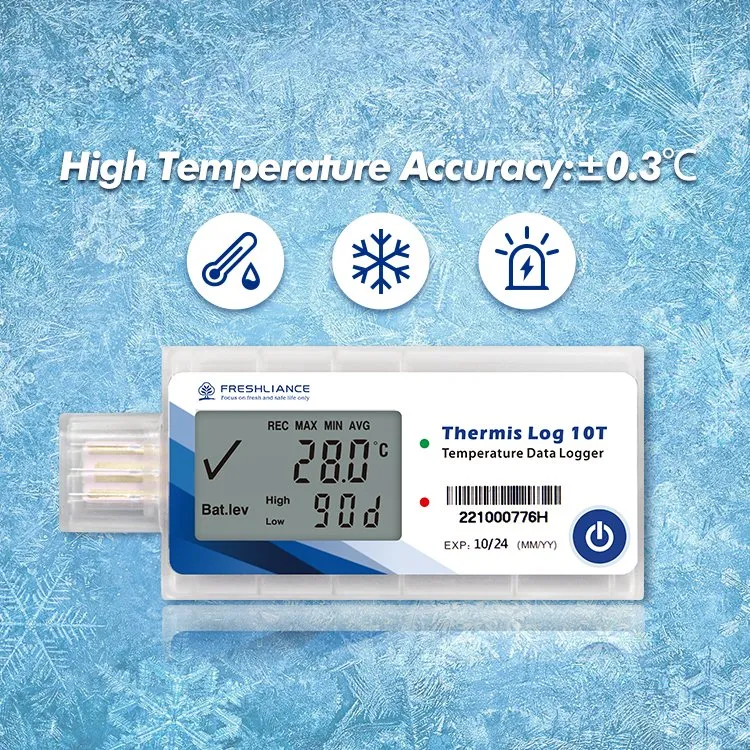

Vaccine Storage Temperature Tracking Device Angle View

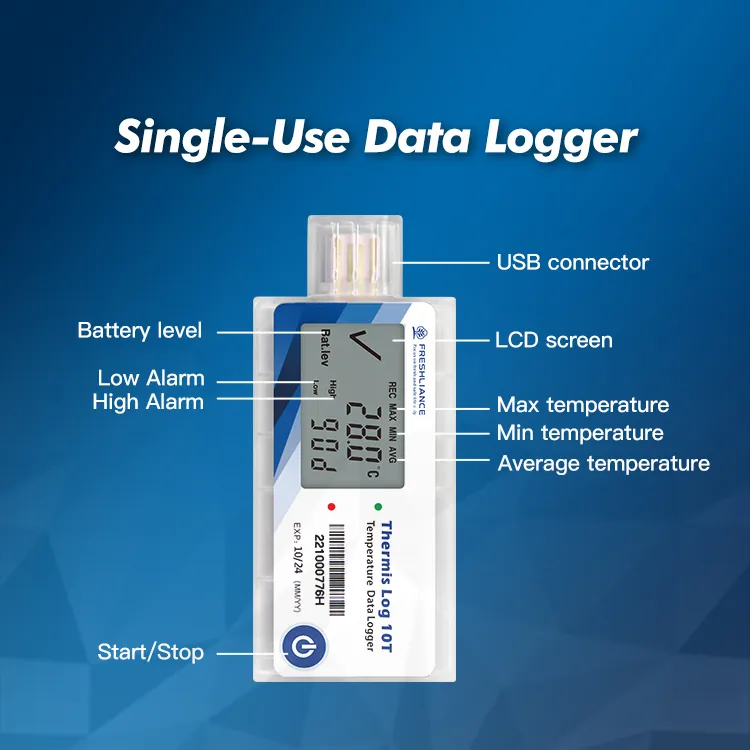

Vaccine Storage Temperature Tracking Device Back View
Thermis Log 10T Single Use Sensor

Ensure the safe transport and storage of vaccines with our Thermis Log 10T Single Use sensor temperature USB data logger. Made with high-precision standards, this sensor offers truly ±0.3ºC accuracy, ideal for pharmaceuticals, food, life science, and more.

Key Features:
  • High accuracy sensor built to reliable standards
  • Suitable for pharmaceuticals, food, life science, and cold-chain logistics
  • USB data logger interface for effortless temperature monitoring and download
  • Irreversible temperature tracking safeguards verification audit trails
  • PDF Logging, CSV temperature history, and online IoT logging integration available

Trust our temperature data logging solutions to ensure the integrity of your cold chain systems.

Temperature Tracking Usage View 1

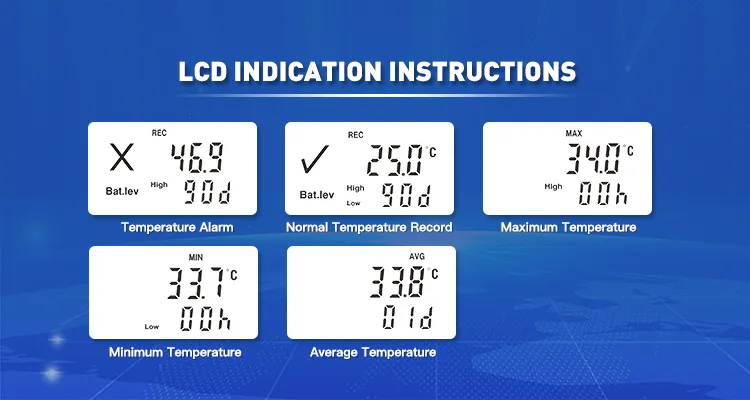

Temperature Tracking Usage View 2

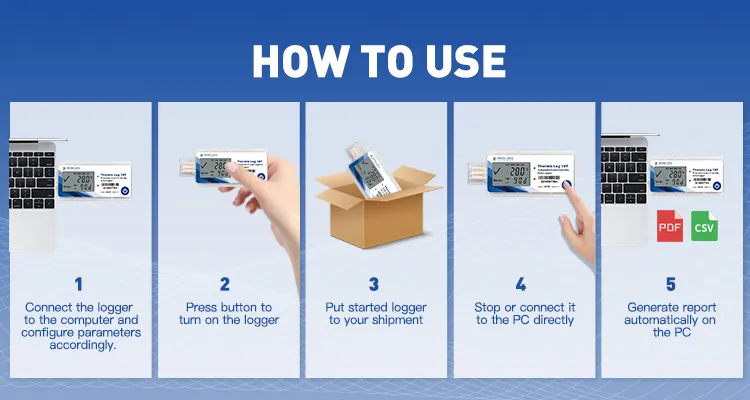

Temperature Tracking Usage View 3

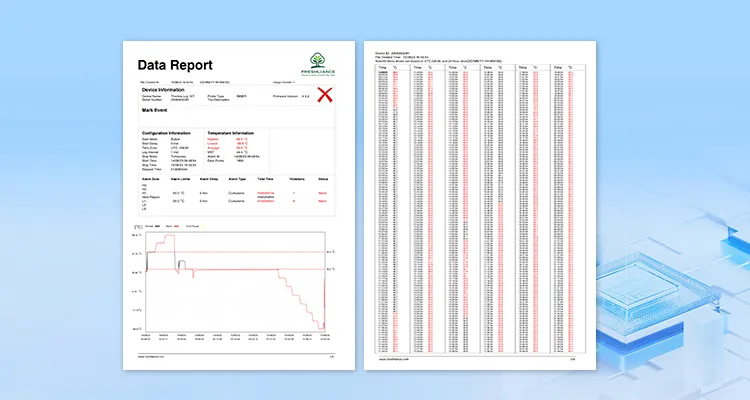

Temperature Tracking Usage View 4

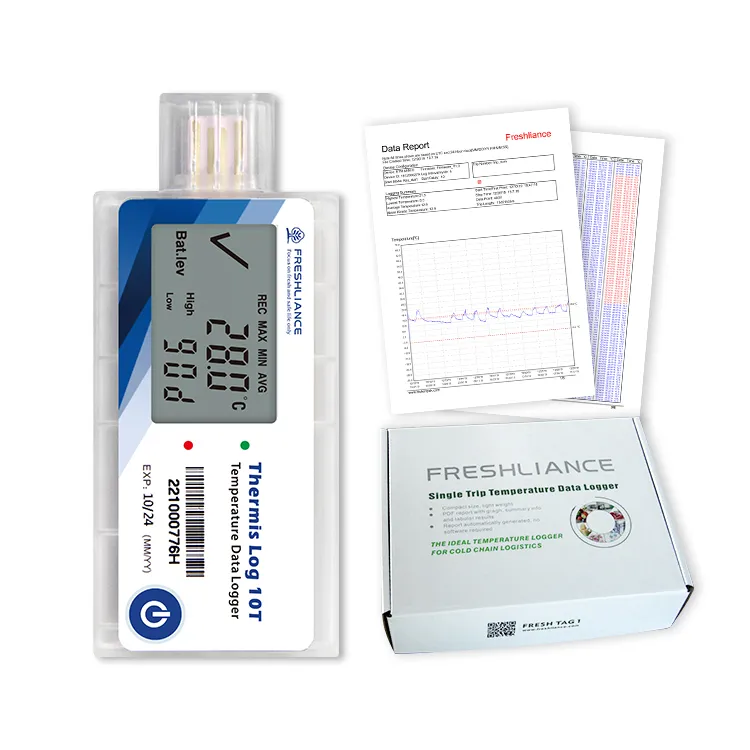

Product Application Display 1

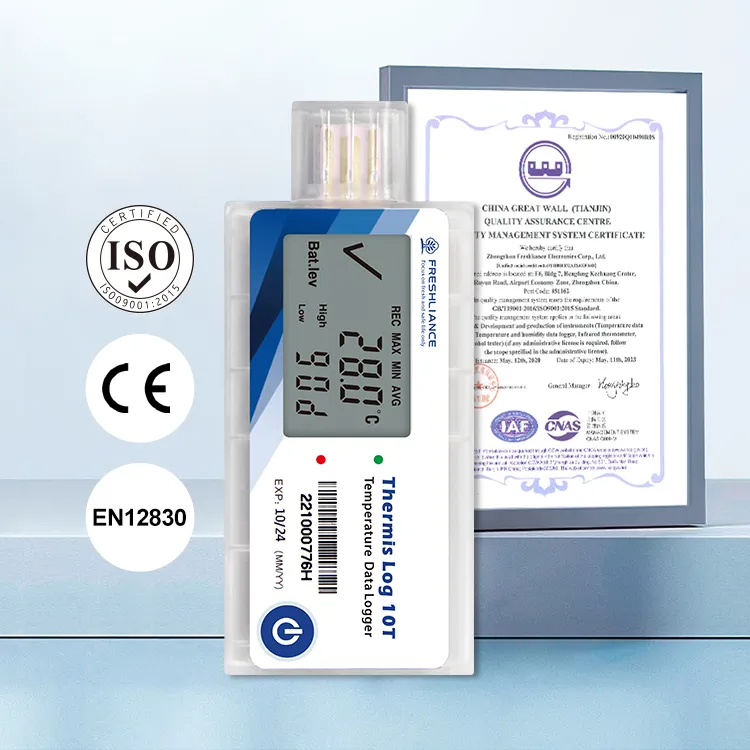

Product Application Display 2

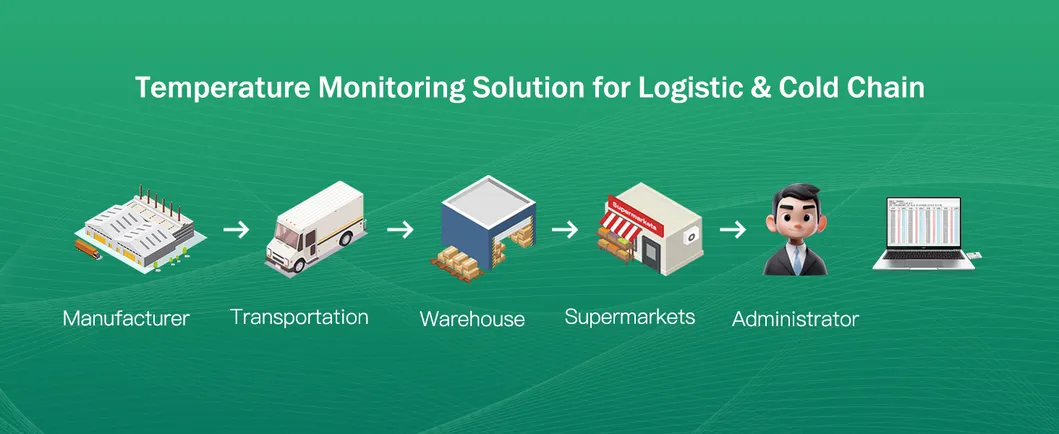

Functional Layout Banner 1
Functional Layout Banner 2
About Us

Welcome to our environmental monitoring enterprise. We are an ISO9000-certified enterprise specializing in temperature and humidity data loggers and environmental monitoring IoT systems for various industries.

Our professional R&D team designs products based on customer needs, ensuring high accuracy in temperature and humidity monitoring, even in extreme conditions below -40ºC.

Our products comply with CE, FDA, ROHS, EN12830, and RTCA/DO-160 standards, offering stability, durability, and advanced functionality. We aim to provide innovative, accurate, and high-quality products with excellent customer service. OEM and ODM orders are welcome!

Production Lab Environment
Testing Lab Facilities

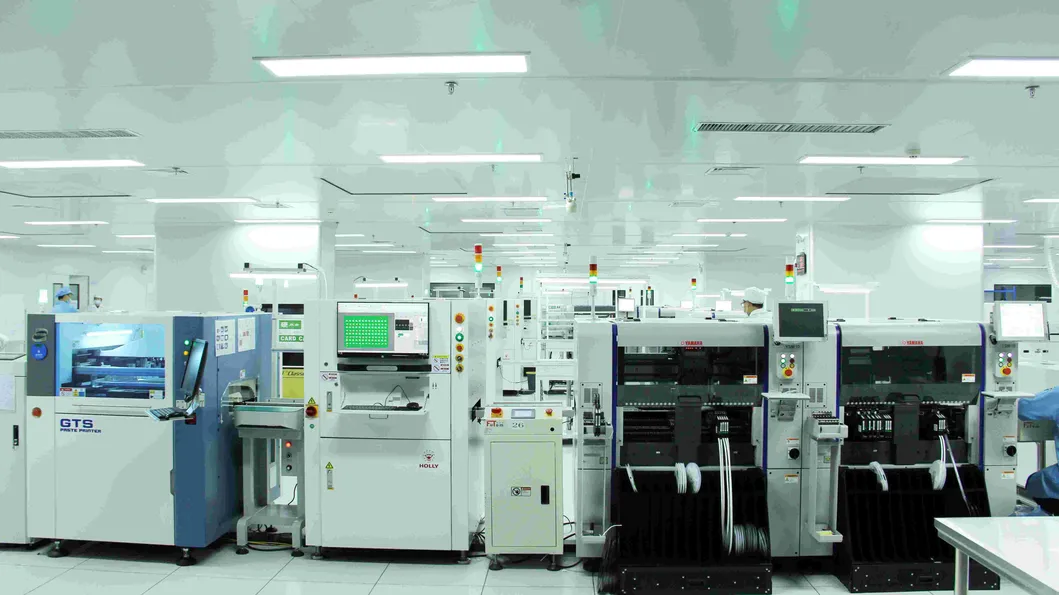

Product Quality Inspection

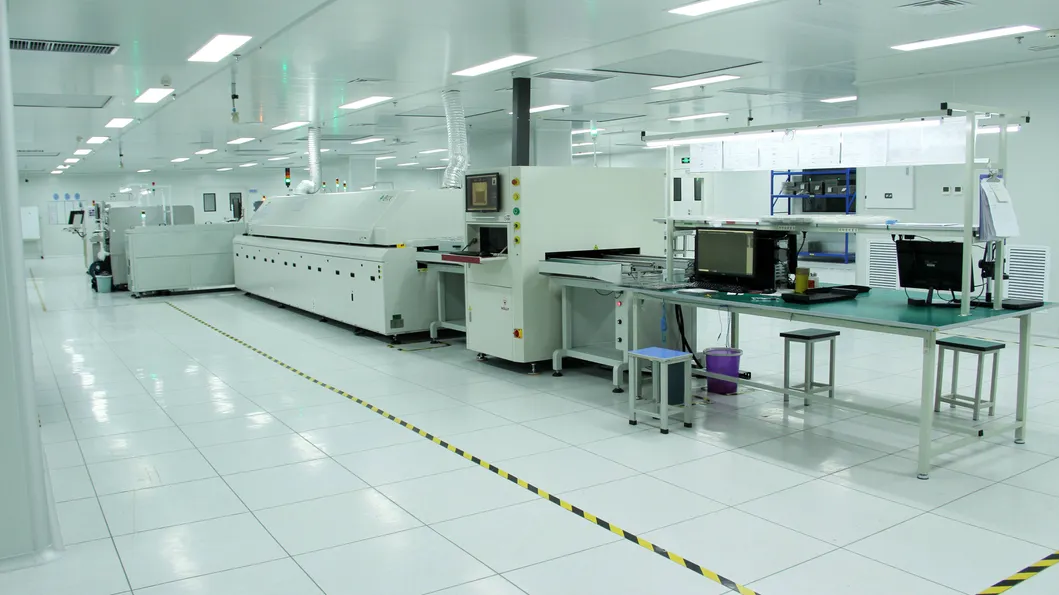

Warehouse Operations

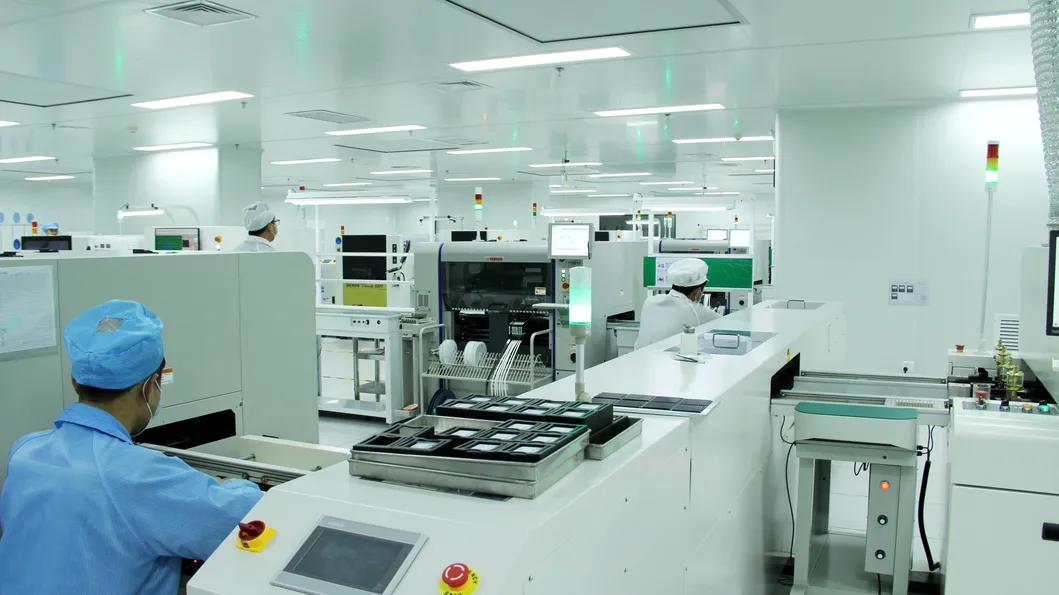

Shipment Inspection
Why Choose Us
  • Over 10 million loggers used by customers worldwide
  • Independent laboratory verifies product performance
  • Professional FDA, CE, EN12830, and ROHS certifications
  • Wide range of loggers to meet diverse cold-chain tracking needs
  • Cost-effective devices built with expert quality standards
  • Fast responsive support and delivery options
  • Private label options and comprehensive one-stop OEM services
  • ISO certified manufacturer with strict quality assurance systems
Common Questions & Answers
Q1: Can I place a sample order first?

A1: Yes, we offer tiered pricing options for small, medium, and large quantities. You can place your sample order based on your current project requirements.

Q2: How can I make payment?

A2: Standard secure payment methods including PayPal, Western Union, and Bank Transfer (T/T) are supported. Reach out for further payment coordination.

Q3: How do I place an order?

A3: You can formally submit your purchase order detailing specifications or request a Proforma Invoice from our sales department.

Q4: What is the estimated delivery time?

A4: Sample orders are dispatched within 2-3 working days. For bulk orders, shipping arrangements typically complete within 5-20 working days depending on quantity.

Q5: How are the products shipped?

A5: Shipments are dispatched using reliable global express logistics networks including DHL, UPS, and FedEx to ensure fast transit time.

Q6: Can you customize products with our designs and logo?

A6: Yes, customized branding options are fully supported, including layout design and logo integration. Both ODM and OEM hardware/software customization services are available.
