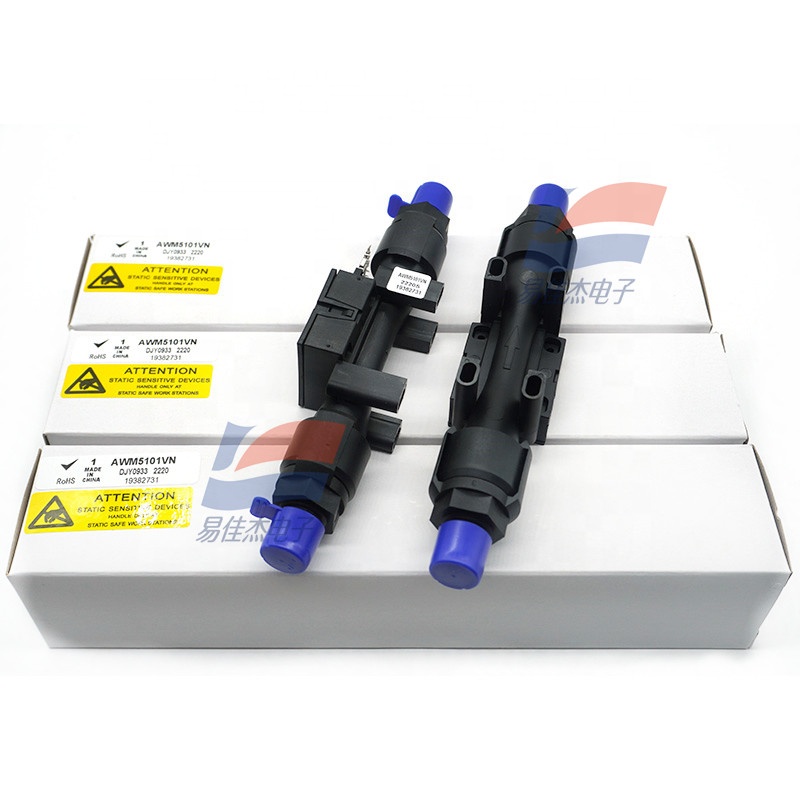

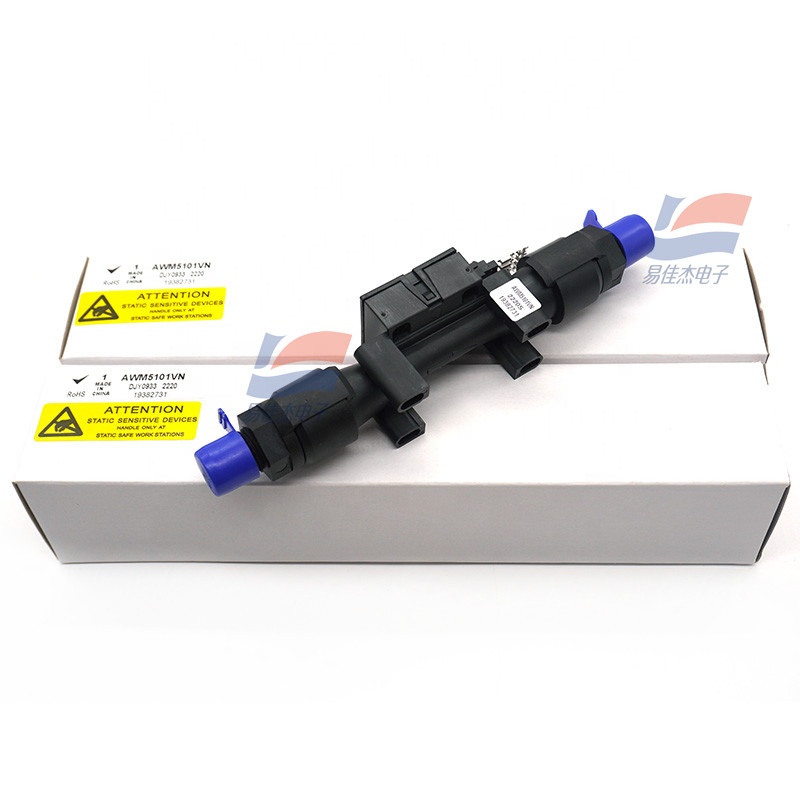

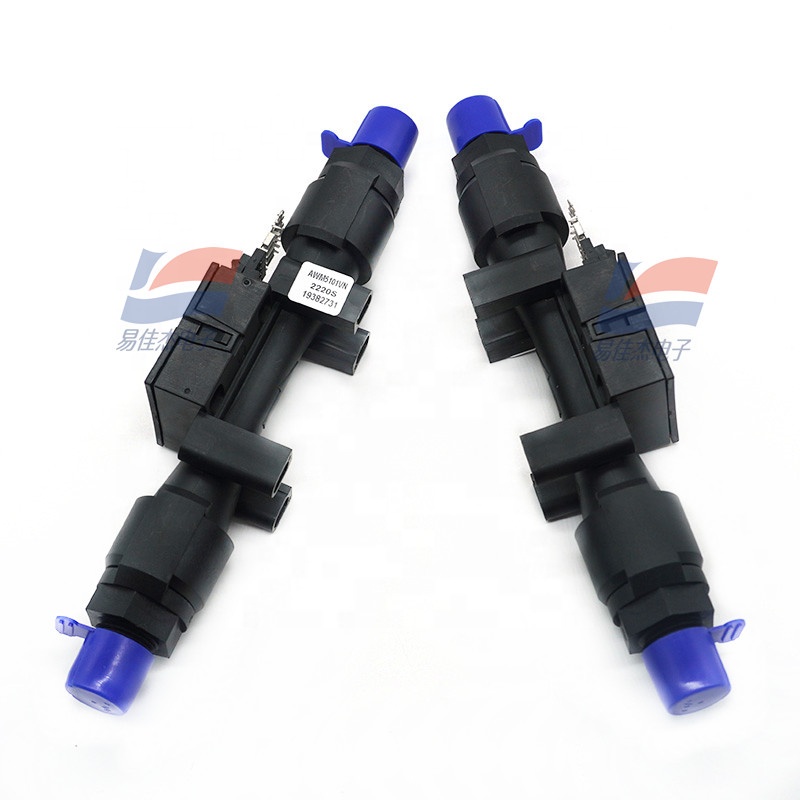

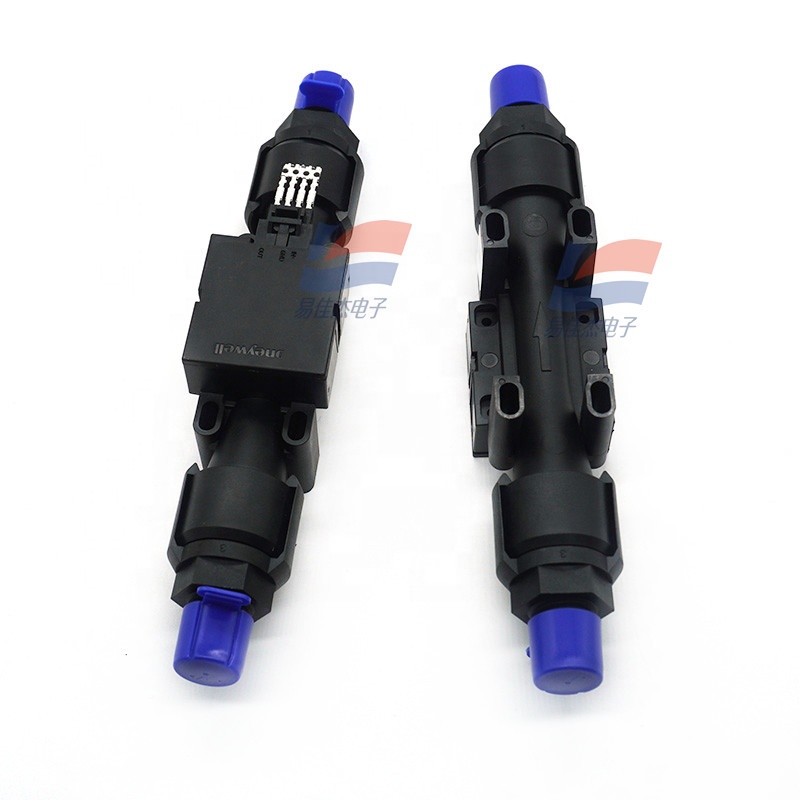

AWM5101VN Air Flow Sensor for Medical Devices Industrial Process Control Consumer Electronics
| Temperature range |
-20° to +70°C, (-4° to 158°F) |
| Weight |
60 grams (2.12 oz.) |
| Shock ratings |
100 g peak, 6 msec half-sine (3 drops, each direction of 3 axes) |
| Output @ laser trim point |
5 VDC @ Full Scale Flow |
Output voltage shift
+20° to -25°C, +20° to 70°C |
Suffix VA or VN ±7.0% Reading, Suffix VC ±10.0% Reading |
| Repeatability & Hysteresis |
±3.0% Reading (max.) |
| Repeatability & Hysteresis |
±0.5% Reading (max.) |
| Leak rate, max |
0.1 psi/min. at static condition |
The AWM5101VN belongs to AWM5100 series, featuring a microbridge MEMS sensing element that detects mass flow directly without temperature or pressure compensation. It is optimized for clean, dry gases (air or non-corrosive gases) and delivers a linear analog output proportional to flow rate. With its compact surface-mount package and low power consumption, it is widely used in medical devices, HVAC systems, and industrial process control where space and energy efficiency are critical.
Key Features
- Direct Mass Flow Measurement: Eliminates the need for additional temperature/pressure compensation, simplifying system design and improving measurement accuracy.
- Analog Output: 0.5 V – 4.5 V signal range (0 flow = 2.5 V, bidirectional flow = ±2 V deviation) for easy integration with microcontrollers.
- Compact & Low Power: SMD package saves PCB space; low power consumption (typ. 60 mW) suits battery-powered devices.
- Bidirectional Flow Detection: Supports both forward and reverse flow measurement, expanding application flexibility.
- Robust MEMS Design: Microbridge technology ensures long-term stability and resistance to mechanical stress.
Typical Applications
- Medical devices: Respirators, nebulizers, oxygen concentrators, and CPAP devices.
- HVAC & building automation: Air flow monitoring in ventilation systems and air purifiers.
- Industrial process control: Low-flow gas metering in precision manufacturing and analytical instruments.
- Consumer electronics: Gas flow detection in fuel cells and miniaturized air quality monitors.
- Automotive: Cabin air flow sensing (specialized variants) and emissions monitoring modules.
